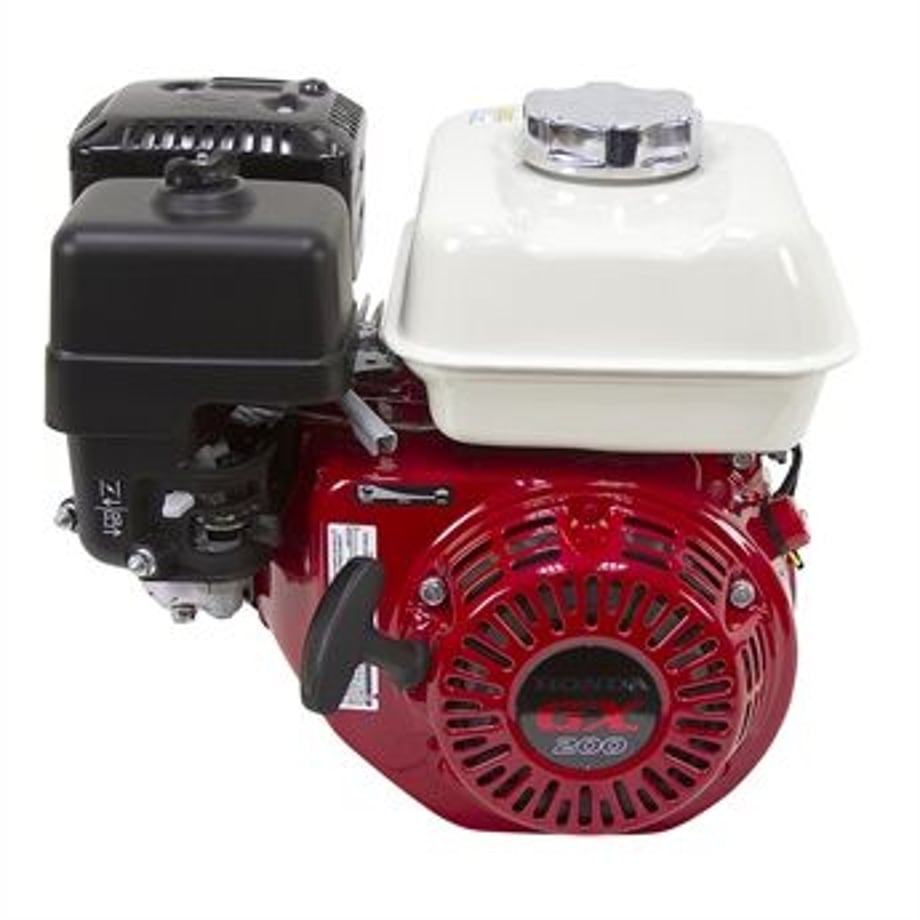

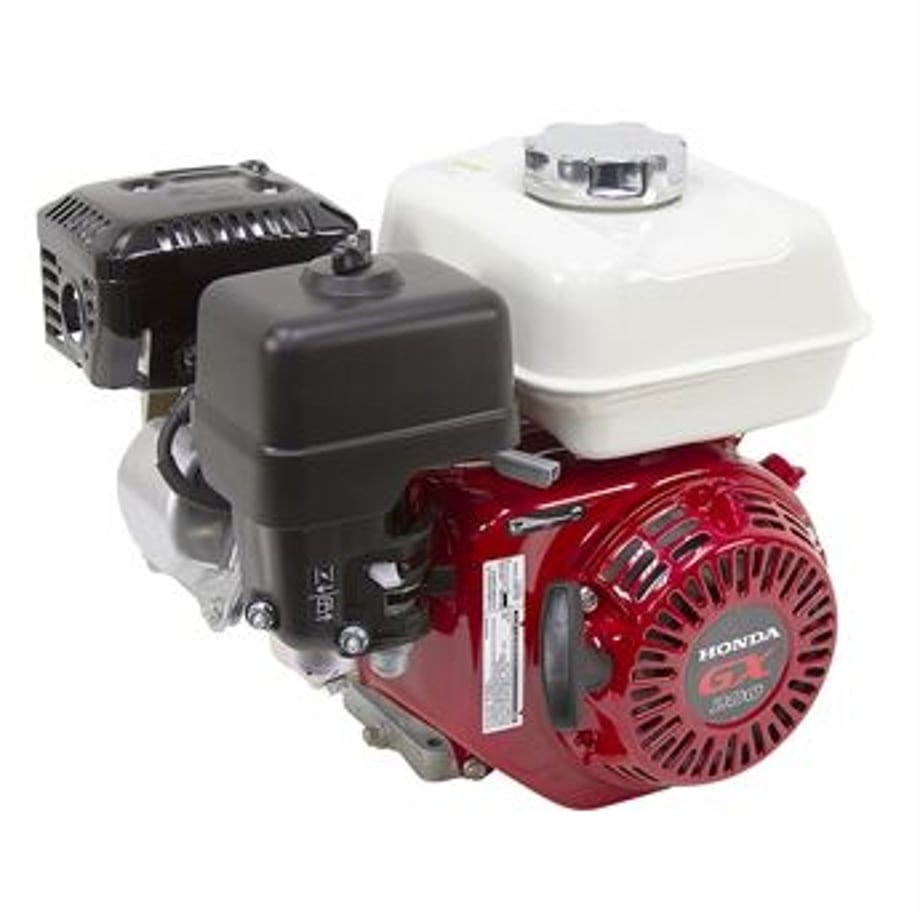

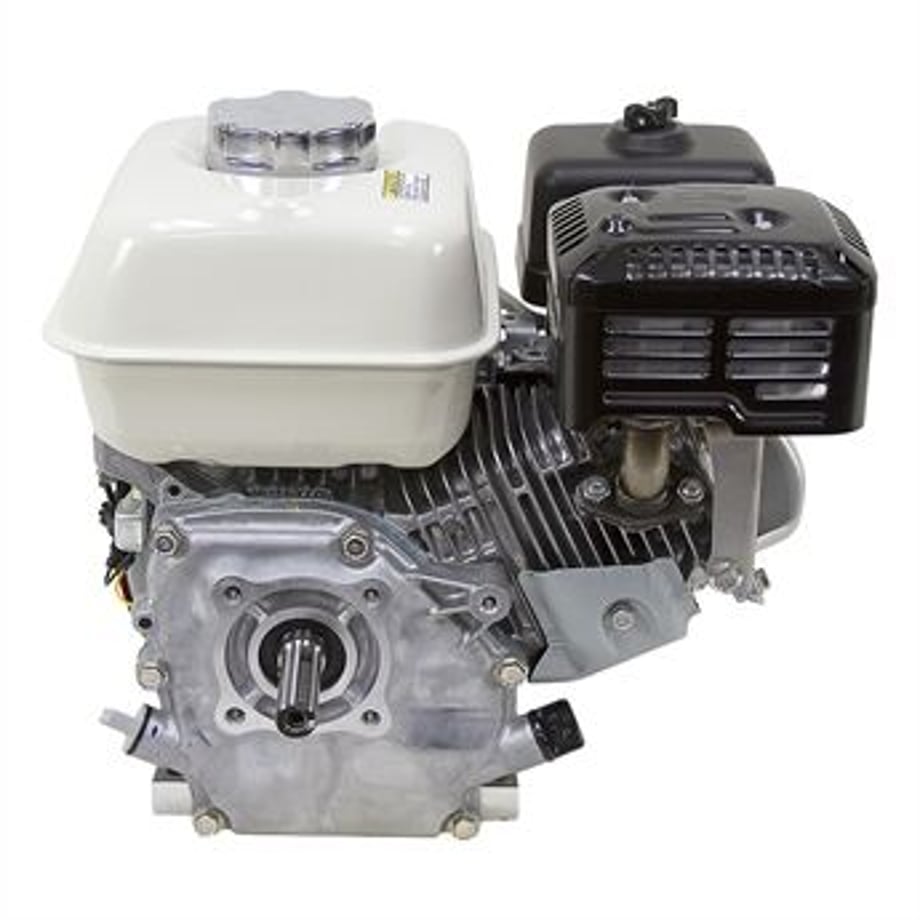

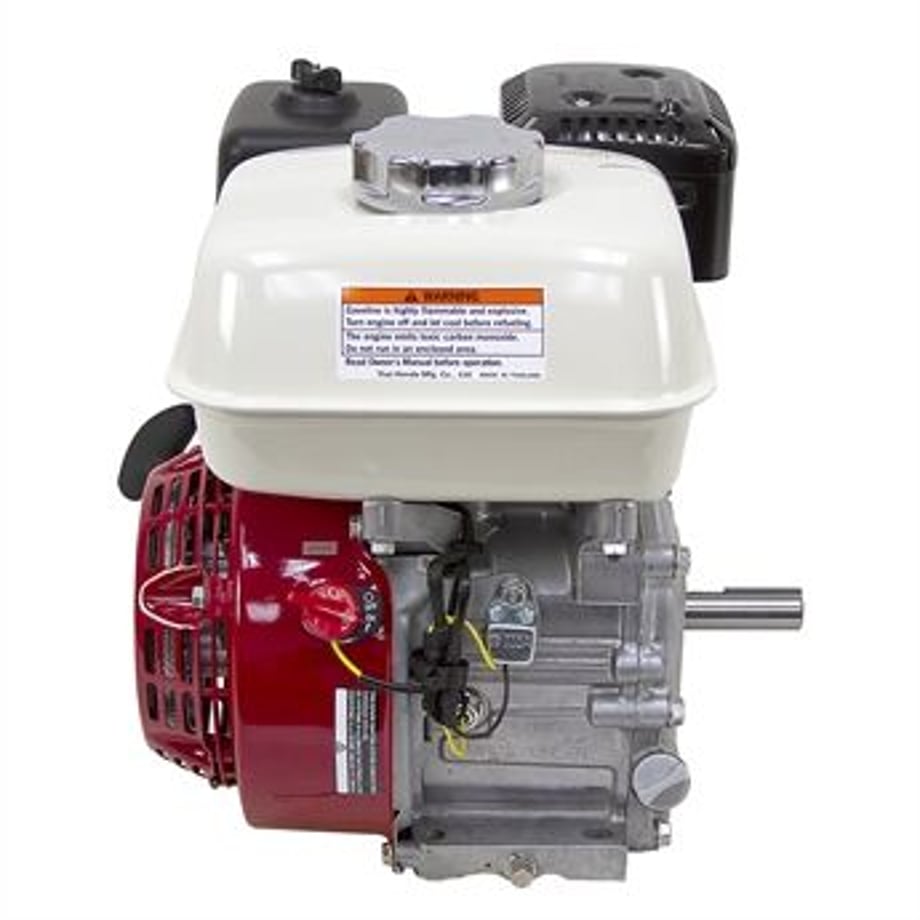

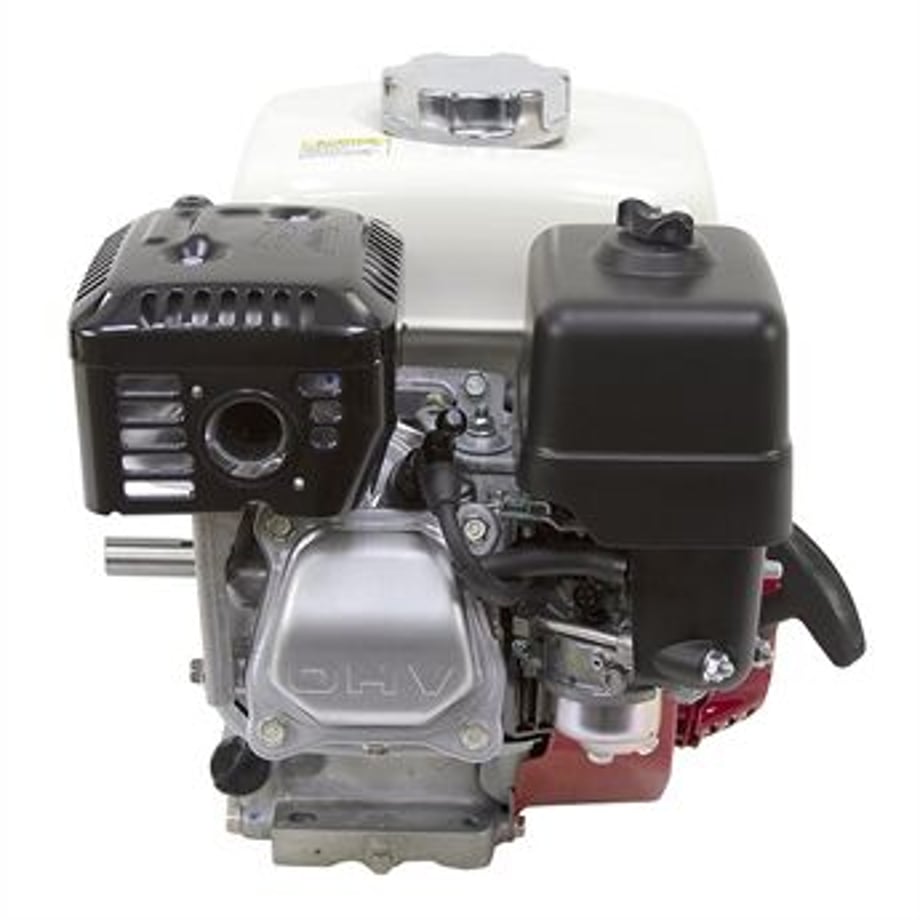

ホンダ GX200 UT2QX2 5.5 HP 196cc 4.6 HP 汎用エンジン(インチ規格用)




このエンジンは出力軸がインチ規格です。 米国製薪割り機等の修理に最適です。 薪割り機は基本的に油圧ポンプを直結するため、適合の判断に関して、ある程度の知識が必要です。 以下に必要な情報の全てが記載されていますので、用語の意味がわからない方は購入をお控えください。 5.5 HP HORIZONTAL SHAFT HONDA GX200 RECOIL START ENGINE New, HONDA GX series horizontal shaft engine. Honda is the worlds largest manufacturer of engines and has earned its reputation for unsurpassed quality, performance and reliability. Engines feature overhead valves, cast iron sleeve liner, ball bearing supported crankshaft, mechanical governor, low-oil sensor, electronic ignition, fuel valve and easy to use controls. Meets EPA and CARB emission regulations for all states. SPECIFICATIONS Model GX200UT2QX2 Engine Family GX Power 5.5 HP Torque 9.1 ft-lbs Bore/Stroke 68mm/54mm Disp. 196 cc Speed 3600 RPM Start Recoil Fuel Tank 3.3 quarts Shaft Horizontal Shaft 3/4" dia. x 2-7/16" keyed, tapped 5/16"-24 UNF Base Mount Four hole on 3.1" x 6.378" centers Accessory Mount 4 bolt on 3-5/8" B.C. Size 11-3/4" X 15" X 13-1/2" Actual Weight 35 lbs. Dimensional Shpg. 48 lbs.
